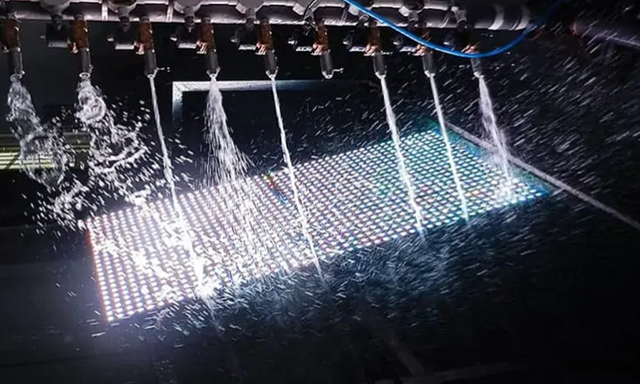

● All our outdoor display boards, whether SMD or DIP configurations, are coated for IP65-67 waterproof protection;

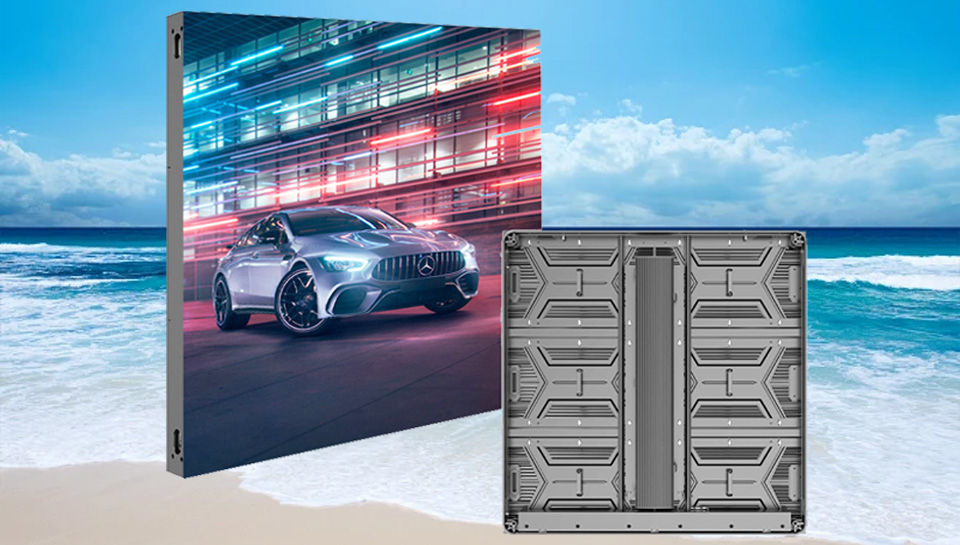

● Seaside signs require an all-aluminum design(FV960 series and Energy-Saving ES800/ES960/ES1000 series) to resist saltwater corrosion and ensure durability in tough conditions.
● Outdoor led displays must maintain high brightness (customizable from 5,000 to 10,000 nits) to ensure clear visibility even under direct sunlight;
● Exterior led boards should also feature adjustable brightness (A brightness sensor needs to be installed in the system; 0~100%, with 100 levels) for smooth transitions between day and night.

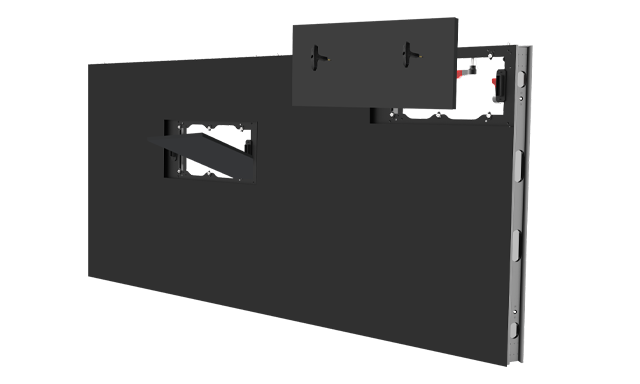

● All outdoor video wall uses a modular led tiles system to reduce maintenance costs;
● Module size options: 320*160mm, 320*320mm, 480*320mm, 400*300mm, 500*250mm;

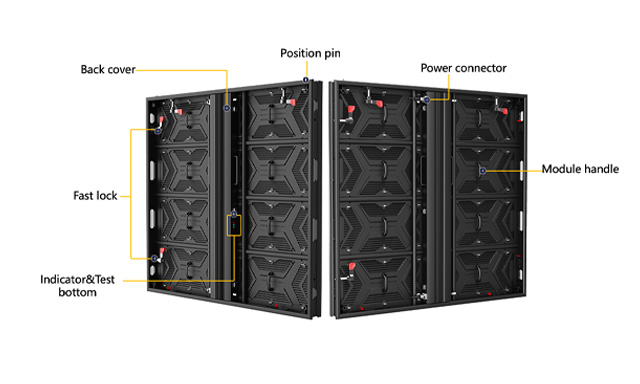

● Magnetic-mounted modules offer both front and rear maintenance options for easier and faster servicing.
● Our outdoor led enclosures come in four materials: sheet metal iron (RM960 series), die-cast magnesium-aluminum alloy (RM960 series), aluminum profiles (FV960 series), and carbon fiber. All are treated with anti-corrosion coatings for durability and wear resistance;
● Lightweight standard-size design (typically 960*960mm) allows flexible configurations, fast seamless assembly, and easy maintenance;
● The RM960 series uses sheet metal iron and can be customized to different sizes, making it suitable for various unique screen shapes.

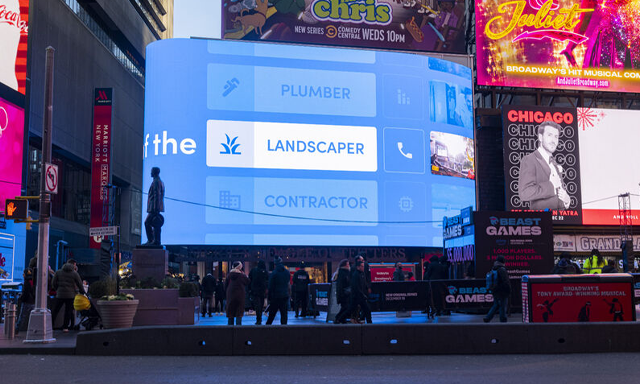

● After high-definition calibration, outdoor pixel displays are perfectly matched to the outdoor viewing distance, supporting different aspect ratios like 3:2, 4:3, or 16:9;
● Outdoor digital display can be selected with a refresh rate between 1920Hz to 3840Hz, ensuring smooth playback of high-definition video even during dynamic motion;
● Outdoor led tv panels come in various pixel pitches (from P2 to P16) and can display resolutions from 720P, 1080P, 2K, to 4K and 8K.

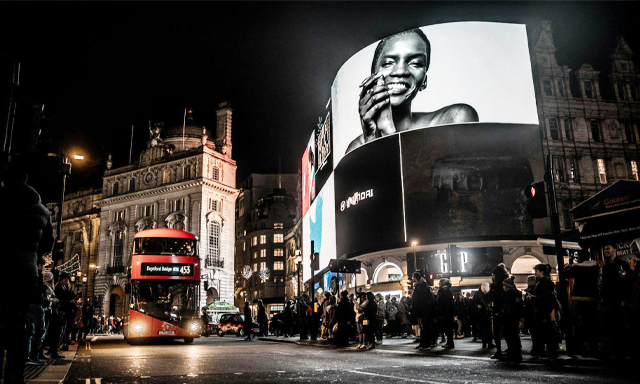

● Exterior led panels use high-quality ultra-bright, wide-view angle LEDs, ensuring optimal viewing from all angles. They also maintain high brightness and uniform black led surfaces, offering a 3-year quality guarantee for excellent visibility;

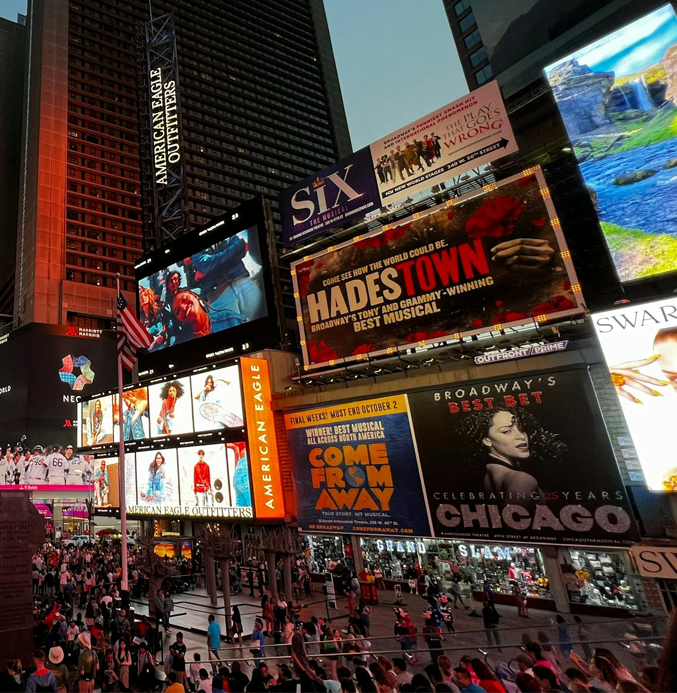

● Advertising boards undergo strict testing and, with 100V/220V voltage support, achieve a lifespan of 80,000 – 100,000 hours.
● Our Energy-Saving screen series uses common cathode technology, maintaining 6000 nits brightness while evenly dissipating heat to lower the screen temperature and save energy;
● This energy-saving technology has been highly praised by customers in tropical regions, especially in the Middle East.
● All of our outdoor open-frame led displays offer a 45° angled option for installation on wall corners, creating a popular 3D wall effect. We can also adjust the design for other shapes, including concave and convex curves, based on your needs;

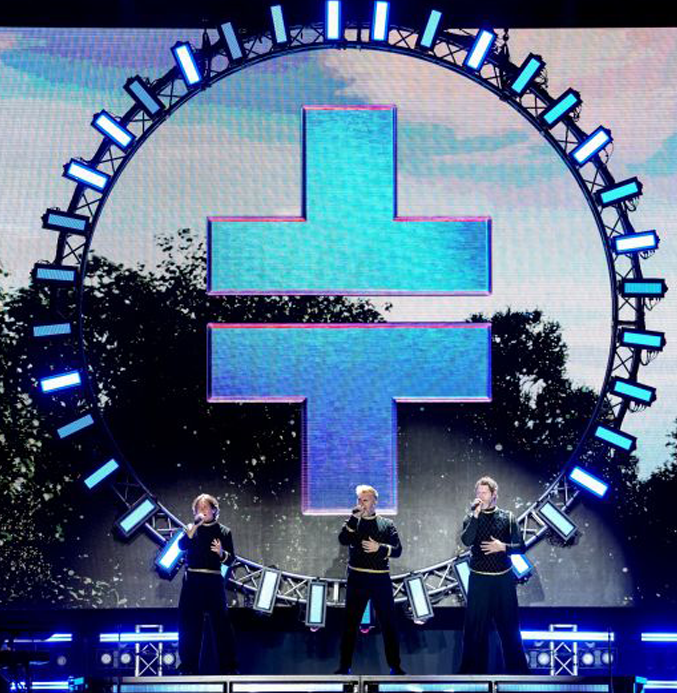

● Programmable led signs, especially those for direct-view church signage, can be customized as double-sided. Various functions, such as power on/off timing, contrast control, and brightness programming, can also be adjusted.
Product Guidance
Outdoor RM960-Series
320*160mm/Module Rear Service P2.5, P3.076, P4, P5, P6.67, P8, P10
